Enhance Your Signal Integrity with the Shareway SC12102ANL 1CT:1CT 5KV Isolation Transformer

In the realm of modern electronics, ensuring reliable signal transmission and isolation is paramount. Shareway’s SC12102ANL 1CT:1CT 5KV AC Isolation Transformer is designed to meet these critical needs, offering exceptional performance and reliability across a variety of applications. Whether you are working on telecommunications systems, networking equipment, or industrial control systems, the SC12102ANL stands out as a top-tier solution for your isolation transformer requirements.

Key Features and Benefits of the SC12102ANL 1CT:1CT 5KV Isolation Transformer

1CT:1CT Turns Ratio

The SC12102ANL transformer features a 1CT:1CT (center-tapped) turns ratio, which is ideal for applications requiring balanced signal transmission and isolation. This configuration helps maintain signal integrity by ensuring that the primary and secondary windings have identical electrical characteristics, minimizing distortion and preserving the quality of the transmitted signal.

High Isolation Voltage

One of the standout features of the SC12102ANL is its high isolation voltage. With an isolation voltage rating of 1500 Vrms, this transformer provides robust electrical isolation between the primary and secondary circuits. This high level of isolation is crucial for protecting sensitive electronic components from voltage spikes and ensuring the safety and reliability of your electronic systems.

Low Leakage Inductance

Leakage inductance can have a detrimental effect on the performance of transformers, especially in high-frequency applications. The SC12102ANL is designed with low leakage inductance, which enhances its efficiency and performance by minimizing energy losses and maintaining signal integrity. This feature is particularly important in applications where high-frequency signal transmission is critical.

Robust and Reliable Construction of the

Durable Materials

Shareway is committed to quality and reliability, and the SC12102ANL transformer is no exception. It is constructed from high-quality materials that ensure long-term durability and consistent performance. This robust construction makes the SC12102ANL a dependable choice for applications that demand high reliability and longevity.

Wide Operating Temperature Range

The SC12102ANL transformer is designed to operate effectively across a wide temperature range, from -40°C to +85°C. This wide operating range ensures that the transformer performs reliably in various environments, from industrial settings to consumer electronics. The thermal stability of the SC12102ANL ensures that it maintains its performance even under fluctuating temperature conditions, providing consistent and reliable operation.

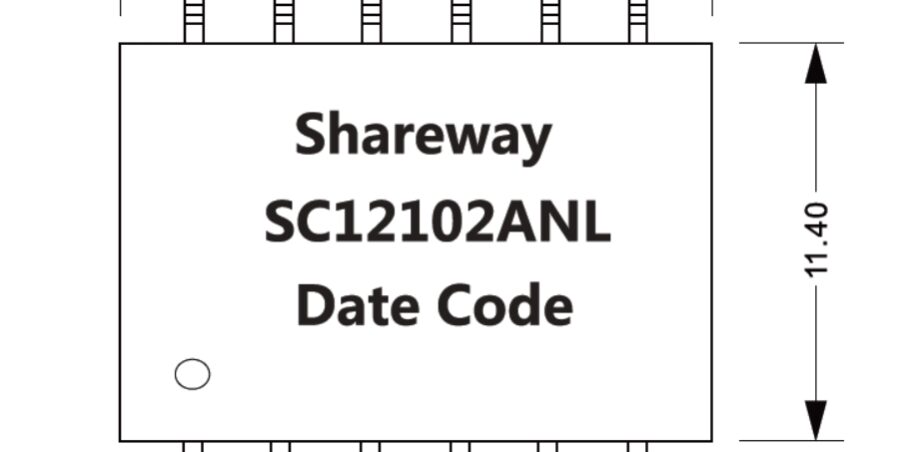

Compact Surface Mount Design

Space efficiency is crucial in modern electronic designs, and the SC12102ANL transformer features a compact, surface-mount design that makes it easy to integrate into your printed circuit boards (PCBs). Despite its small footprint, the transformer does not compromise on performance, offering high isolation and reliable signal transmission in a compact form factor. This efficient design helps you save valuable PCB space without sacrificing performance.

Versatile Applications

The versatility of the SC12102ANL 1CT:1CT Isolation Transformer makes it suitable for a wide range of applications, including:

• Telecommunications: Providing reliable signal isolation and transmission in networking equipment, modems, and communication devices.
• Industrial Control Systems: Enhancing the performance and reliability of industrial automation and control systems.
• Power Supplies: Improving the efficiency and stability of switch-mode power supplies (SMPS) and other power conversion systems.
• Consumer Electronics: Supporting the performance of various consumer electronics by providing effective signal transmission and isolation.
• Medical Devices: Ensuring safe and reliable signal isolation in medical electronic equipment.

Technical Specifications of the SC12102ANL 1CT:1CT 5KV Isolation Transformer

To give you a clearer understanding of the capabilities of the SC12102ANL, here are some of its key technical specifications:

• Turns Ratio: 1CT:1CT
• Isolation Voltage: up to 5000 Vrms
• Inductance: 350uH Min
• Leakage Inductance: ≤ 10 µH
• DC Resistance: ≤ 0.5 Ohms
• Operating Temperature: -40°C to +85°C
• Package: Surface Mount

These specifications highlight the SC12102ANL’s ability to deliver high performance and reliability across a wide range of operating conditions, making it a versatile and dependable choice for your electronic designs.

Conclusion

The Shareway SC12102ANL 1CT:1CT 5kV Isolation Transformer is a high-performance, versatile, and reliable component designed to meet the demands of modern electronic systems. With its balanced turns ratio, high isolation voltage, low leakage inductance, and robust construction, this transformer is the ideal solution for a wide range of applications, from telecommunications and industrial control systems to power supplies and consumer electronics.

By choosing the SC12102ANL, you are investing in a component that ensures reliable signal transmission, effective isolation, and long-term durability. For more information about the SC12102ANL 1CT:1CT Isolation Transformer and how it can benefit your projects, please contact Shareway’s technical support team. We are here to provide expert guidance and support to help you achieve your design goals.
