ST6858ANL 5kV Isolation Transformer for DC/DC Converter

Application: DC/DC Converter

Category: Product Design

Date: July 2021

Visit website

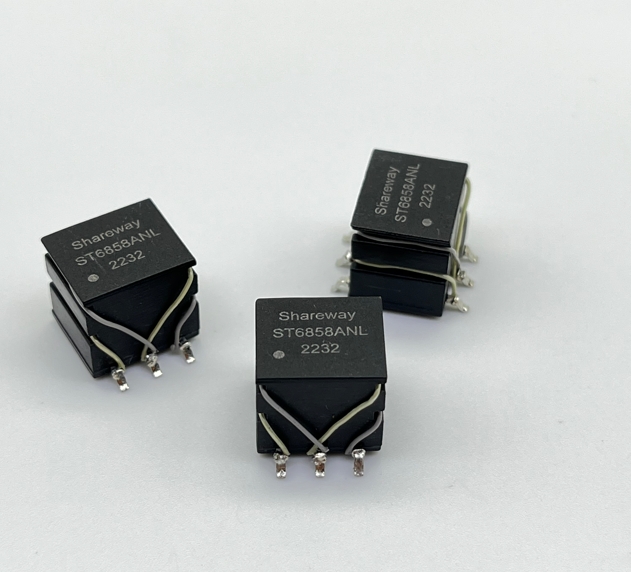

ST6858ANL 5kv Isolation Transformer

ST6858ANL 5kv Isolation Transformer

The customer came to us with willing to reduce their cost and shorten the lead time.

By creating the new tooling for the package, we succeed in manufacturing the ST6858ANL to reach the goal of this customer.

High quality design
Fast lead time support
Affordable design
Customer satisfied solution

ST6858ANL 5kV Isolation Transformer: Reliable Performance for High-Voltage Applications

Introduction

In the realm of high-voltage applications, the ST6858ANL 5kV isolation transformer stands out as a critical component designed to ensure safety, reliability, and efficiency. This transformer is engineered to provide superior isolation and performance, making it an ideal choice for engineers and purchasers seeking dependable solutions in demanding environments.

What is the ST6858ANL 5kV Isolation Transformer?

The ST6858ANL is a high-performance isolation transformer that offers a robust 5kV isolation voltage. It is designed to transfer electrical energy between two circuits while maintaining electrical isolation, which is crucial for preventing electrical shocks, minimizing noise, and protecting sensitive components from high-voltage spikes.

Key Features and Specifications

  • High Isolation Voltage: 5000V
  • Primary to Secondary Isolation: Ensures safety and reliability in high-voltage applications
  • Compact Design: Easy to integrate into various circuit designs
  • High Efficiency: Optimized for minimal energy loss
  • Temperature Range: Operates efficiently in a wide range of temperatures from -40℃ to +85 ℃.
  • RoHS Compliant: Environmentally friendly and meets global standards

Applications of the ST6858ANL 5kV Isolation Transformer

The ST6858ANL is versatile and finds applications in various industries, including:

1. Medical Equipment:

  • Patient Monitoring Systems: Ensures electrical isolation to protect patients and sensitive monitoring equipment.
  • Diagnostic Imaging Devices: Provides reliable isolation in MRI, CT, and X-ray machines, ensuring patient safety and equipment functionality.

2. Industrial Automation:

  • Motor Control Systems: Protects control circuits from high-voltage spikes generated by motors.
  • PLC Systems: Ensures reliable data transmission and isolation in programmable logic controllers.

3. Telecommunications:

  • Base Stations: Provides isolation and protection for high-frequency signals in telecom equipment.
  • Networking Equipment: Ensures data integrity and protection in routers and switches.

4. Power Supplies:

  • Switched-Mode Power Supplies (SMPS): Enhances the efficiency and safety of power supply units.
  • Inverters and Converters: Integral in renewable energy systems like solar and wind power converters.

5. Consumer Electronics:

  • Chargers and Adapters: Ensures safety and efficiency in everyday electronic devices.

Why Choose the ST6858ANL 5kV Isolation Transformer?

1. Superior Safety and Reliability:

  • The ST6858ANL transformer provides a high level of electrical isolation, ensuring the safety of both users and sensitive electronic components. This is particularly important in medical and industrial applications where equipment reliability and user safety are paramount.

2. High Efficiency:

  • Designed with efficiency in mind, the ST6858ANL minimizes energy loss, which is crucial for applications that demand consistent and reliable power transfer. This efficiency also contributes to the overall longevity and performance of the device.

3. Compact and Versatile Design:

  • The compact form factor of the ST6858ANL allows for easy integration into a variety of circuit designs and systems. Its versatile application range makes it a valuable component for engineers working on diverse projects.

4. Robust Performance:

  • Capable of operating efficiently across a wide temperature range, the ST6858ANL is built to withstand the demanding conditions of industrial and medical environments.

5. Compliance with Global Standards:

  • The ST6858ANL is RoHS compliant, ensuring it meets global environmental and safety standards. This compliance makes it a responsible choice for companies looking to adhere to stringent regulatory requirements.

Conclusion

For engineers and purchasers seeking a reliable, high-performance isolation transformer, the ST6858ANL 5kV isolation transformer is an excellent choice. Its superior safety features, high efficiency, and versatile design make it suitable for a wide range of applications, from medical equipment to industrial automation and telecommunications.

By choosing the ST6858ANL, you are investing in a component that guarantees safety, reliability, and long-term performance. Contact Shareway Technology today to learn more about how the ST6858ANL 5kV isolation transformer can meet your high-voltage application needs.

Contact Us

For more information or to place an order, please visit our website or contact our sales team by clicking here. Let Shareway Technology provide you with the solutions you need to drive your projects forward with confidence.

You can also contact our distributor Gamma to get more details.

Thank you for choosing Shareway Technology for your high-performance transformer needs.
