DC-DC Transformer ST6858ANL

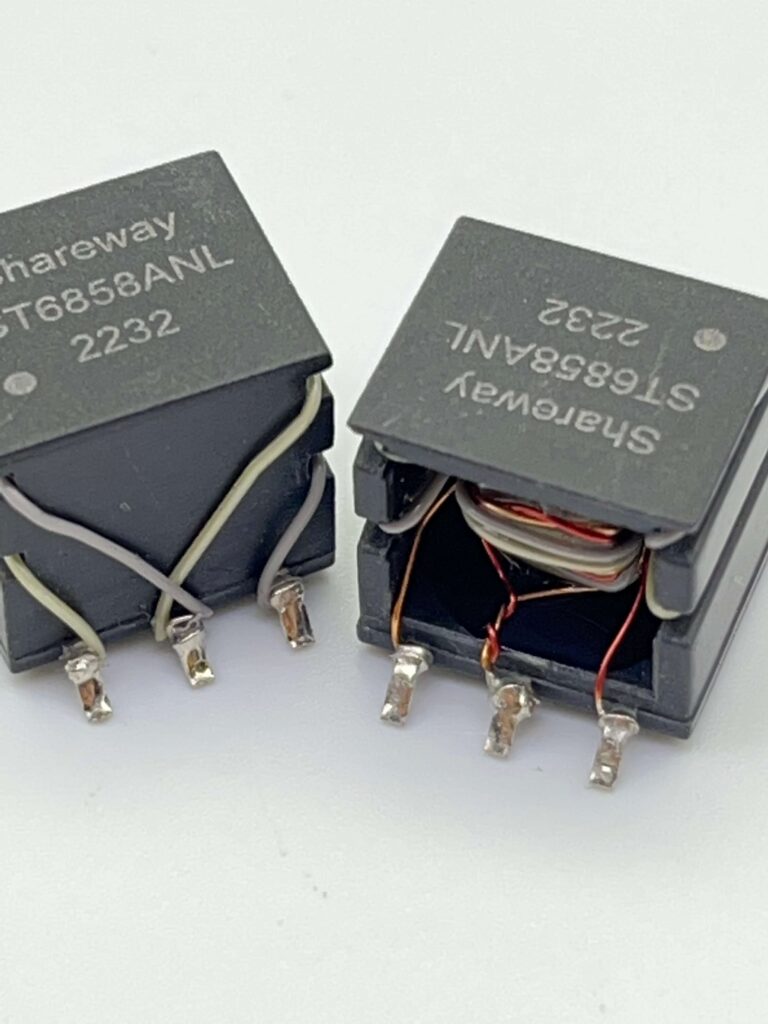

Introducing the Shareway DC-DC Transformer ST6858ANL

The Shareway DC-DC Transformer ST6858ANL stands at the cutting edge of power conversion technology, designed to meet the exacting demands of contemporary electronic systems. With its exceptional efficiency, robust construction, and versatile application range, the ST6858ANL is the ideal solution for a variety of power conversion needs. Notably, it is highly compatible with Texas Instruments’ SN6501, SN6505, and SN6507 chipset families, making it a perfect choice for designers seeking reliable and efficient transformer solutions.

Key Features of the ST6858ANL DC-DC Transformer

The ST6858ANL transformer boasts a comprehensive set of features that set it apart in the power conversion market:

  1. High Efficiency
    • The ST6858ANL is engineered for optimal efficiency, significantly reducing energy losses and maximizing power throughput. This high efficiency translates to lower operational costs and enhanced overall system performance.
  2. Compact Design
    • Space is a premium in many electronic applications. The ST6858ANL addresses this challenge with a compact, space-saving design that allows for seamless integration into a wide range of devices and systems without compromising performance.
  3. Wide Input Voltage Range
    • The ST6858ANL supports a broad input voltage range, ensuring compatibility with various power sources. This versatility makes it a suitable choice for diverse applications across different regions and industries.
  4. Robust Construction
    • Built with high-quality materials, the ST6858ANL ensures durability and long-term reliability. Its robust construction is designed to withstand demanding operating environments, providing consistent performance over its lifespan.
  5. Advanced Thermal Management
    • Effective thermal management is crucial for maintaining the reliability and longevity of electronic components. The ST6858ANL incorporates advanced thermal management features to efficiently dissipate heat, ensuring stable operation even under heavy load conditions.
  6. Low Electromagnetic Interference (EMI)
    • Electromagnetic interference can disrupt the operation of electronic systems. The ST6858ANL is designed to minimize EMI, ensuring smooth performance and compatibility with other electronic devices.

Compatibility with SN6501, SN6505, and SN6507 Chipsets

The ST6858ANL is particularly well-suited for use with Texas Instruments’ SN6501, SN6505, and SN6507 chipsets. These chipsets are widely used in isolated power supply designs, and the ST6858ANL complements them perfectly with its reliable performance and efficiency.

  • SN6501
    • The SN6501 is a simple, low-noise push-pull transformer driver. The ST6858ANL provides the necessary isolation and voltage conversion, enhancing the performance of systems utilizing the SN6501.
  • SN6505
    • The SN6505 offers advanced features such as soft-start, current limiting, and thermal shutdown. The high efficiency and robust performance of the ST6858ANL make it an ideal match for the SN6505, ensuring reliable power conversion and isolation.
  • SN6507
    • The SN6507 is designed for high-power applications, requiring efficient and reliable transformers. The ST6858ANL’s advanced thermal management and low EMI characteristics make it well-suited for use with the SN6507, providing stable and efficient power conversion.

Applications of the ST6858ANL DC-DC Transformer

The versatility of the ST6858ANL makes it suitable for a wide range of applications, including:

  1. Telecommunications
    • Telecommunications infrastructure relies heavily on efficient power conversion. The ST6858ANL is ideal for use in telecom equipment, ensuring reliable operation of network devices and communication systems.
  2. Industrial Automation
    • In industrial settings, reliable power supplies are crucial. The ST6858ANL can be used in various industrial applications, including automation systems, control panels, and machinery, providing stable and efficient power conversion.
  3. Renewable Energy Systems
    • As the world shifts towards renewable energy, efficient power conversion becomes even more critical. The ST6858ANL can be integrated into solar inverters and other renewable energy systems, optimizing the conversion of energy from renewable sources.
  4. Medical Devices
    • Medical devices demand the highest levels of reliability and safety. The ST6858ANL meets these stringent requirements, making it suitable for use in medical equipment such as diagnostic machines, patient monitors, and other critical devices.
  5. Consumer Electronics
    • From televisions to gaming consoles, the ST6858ANL is perfect for powering consumer electronics that require efficient and reliable power conversion.
  6. Automotive Applications
    • The automotive industry requires components that can withstand extreme conditions. The robust construction and high efficiency of the ST6858ANL make it suitable for use in electric vehicles, charging stations, and other automotive applications.

Benefits of Choosing the ST6858ANL DC-DC Transformer

When you choose the ST6858ANL, you’re investing in a product that offers numerous benefits:

  1. Cost Savings
    • High efficiency means lower energy consumption and reduced operational costs. Over time, this translates to significant savings for your business.
  2. Enhanced Reliability
    • The robust design and advanced thermal management features ensure that the ST6858ANL operates reliably, reducing the risk of downtime and maintenance costs.
  3. Flexibility
    • The wide input voltage range and compact design provide flexibility in system design and application, making it easier to integrate into various projects.
  4. Environmental Benefits
    • Lower energy consumption and reduced heat generation contribute to a smaller carbon footprint, supporting your sustainability goals.
  5. Compliance with Standards
    • The ST6858ANL meets all relevant industry standards and regulations, ensuring safe and compliant operation in all applications.

Conclusion

The Shareway DC-DC Transformer ST6858ANL is a premium solution for modern power conversion needs. Its combination of high efficiency, robust construction, and versatile application makes it the ideal choice for a range of industries and applications. By choosing the ST6858ANL, you’re investing in a reliable, cost-effective, and environmentally friendly power conversion solution.

Explore the ST6858ANL today and take the first step towards more efficient and reliable power conversion in your systems. Contact us for more information or check datasheet here, and experience the difference that the ST6858ANL can make in your applications. With its advanced features and robust performance, the ST6858ANL is poised to be an integral component in powering the future of technology and innovation.
